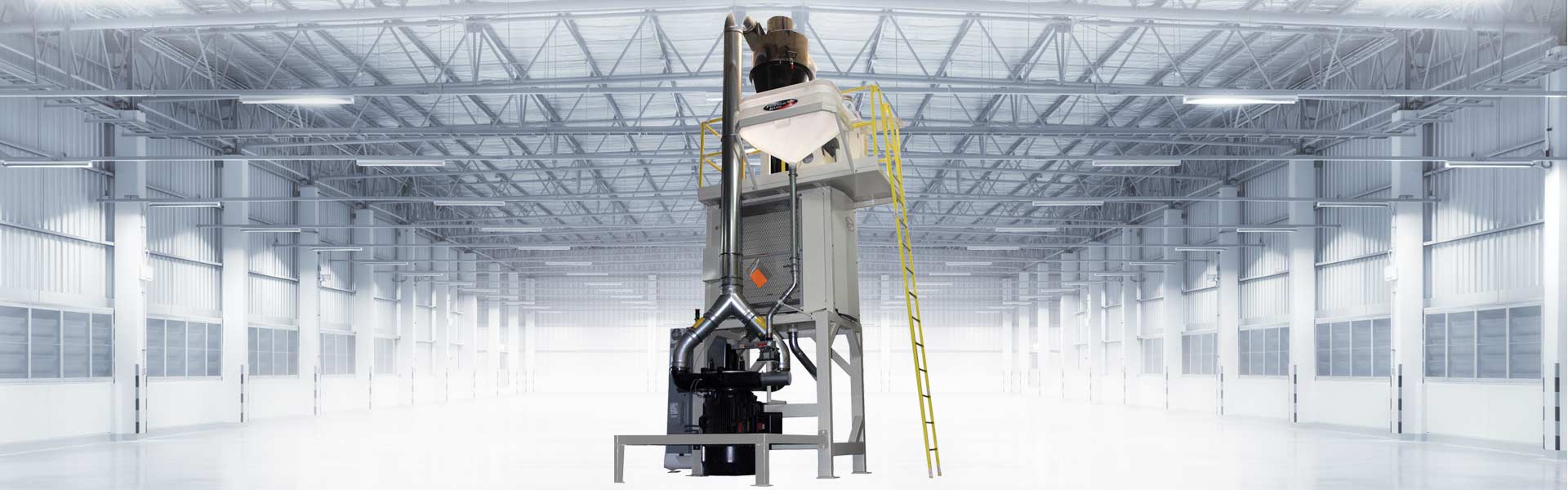

PKA VELOCITY SERIES PULVERIZER

  • Greater Output than Comparable Models
  • Reduced Clean Down-time
  • New Patent Pending Mill Housing with Dual Air Inlet and Dual Material Outlets
  • 8″ HMI Touchscreen
  • Eaton Logic PLC Operating System
  • Air Management Design
  • Direct Drive design with 150 Hp Premium Efficiency Cast Iron Mill Motor
  • 9-Deck High Volume Sifter
  • 20″ Abrasion Resistant Disks
  • Single Tool Gap Adjusters
  • Through-Put Rates 1600-2200lbs/hr
velocity-01

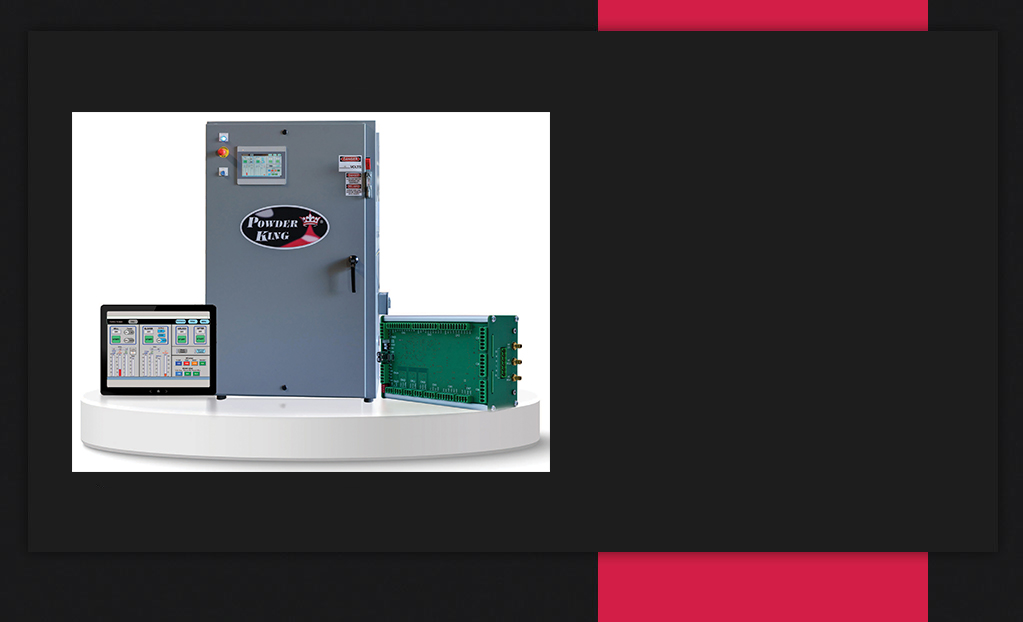

Control Panel

  • 8" HMI Touchscreen

  • Eaton Logic PLC Operating System

velocity-02

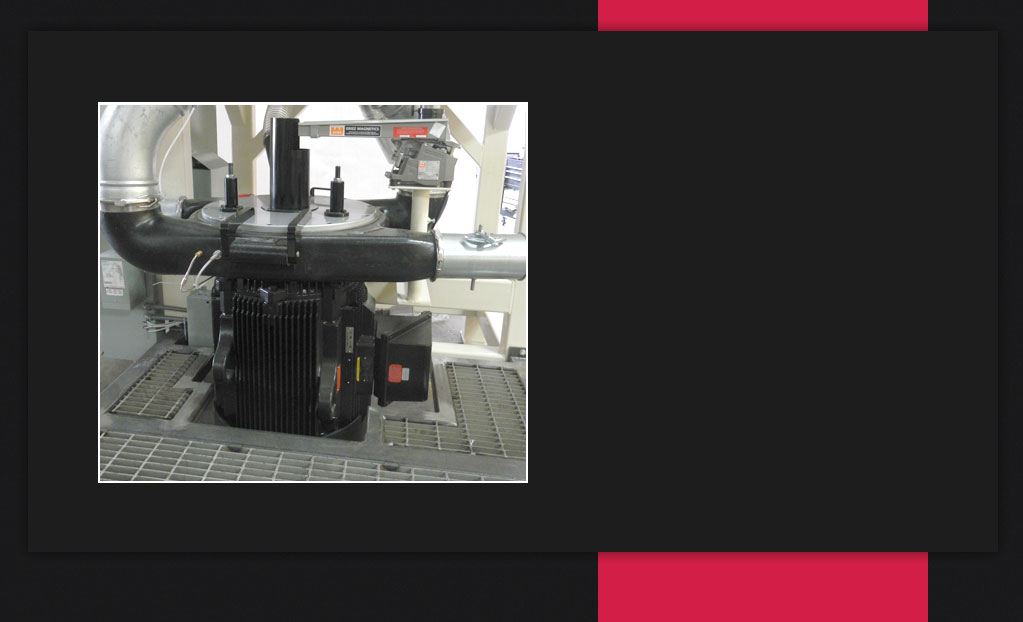

Direct Drive

  • Direct Drive to utilize 100% of motor horsepower

  • The direct drive mill is powered by a 150 HP motor, which is driven by an inverter drive mounted into the control panel of the machine for the mill motor

  • Reduced noise level with direct drive

  • Unique aerodynamic mill design.

9-deck-sifter

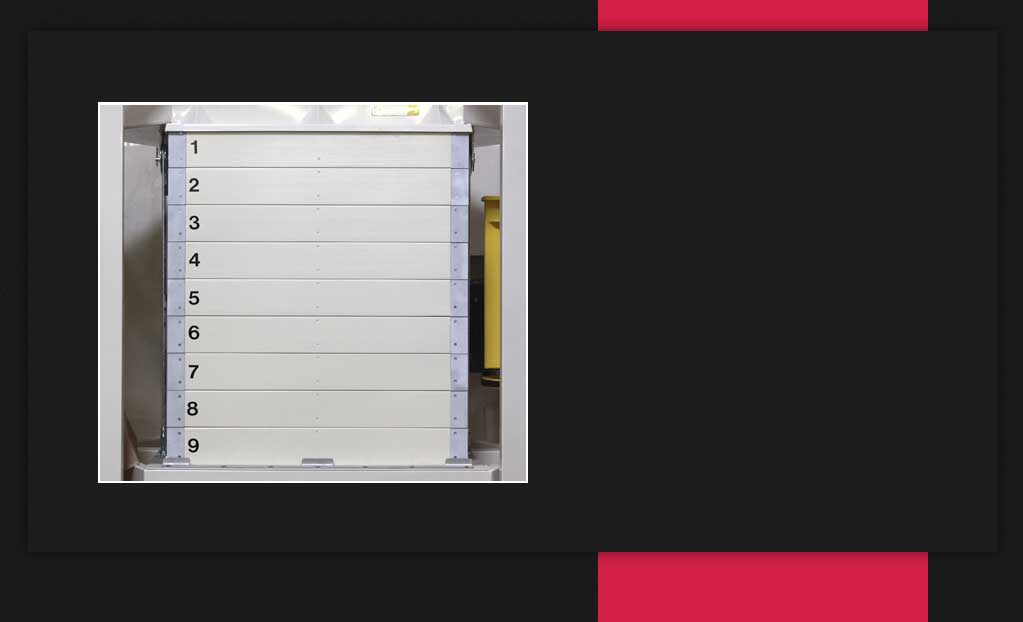

9-Deck Sifter

  • Multi-deck Great Western high capacity sifter for precise particle separation

velocity-mill-housing

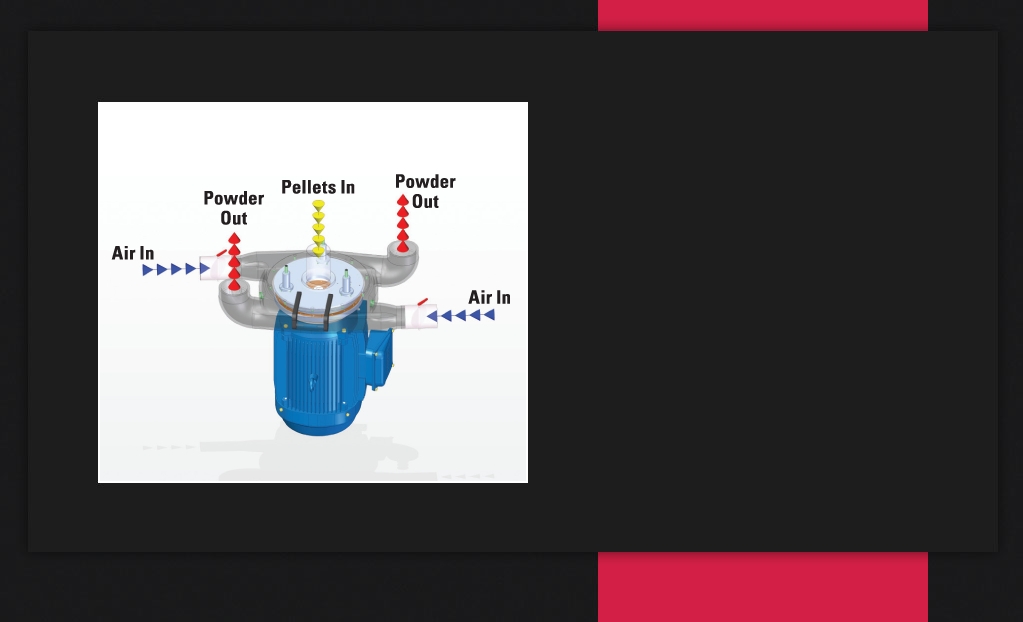

Dual Air Inlets

  • Extra thick, heavy-duty malleable steel housings are cast in one-piece for increased safety

  • “Y” mainline vacuum pipe to the mills allows for equal vacuum draw at both mills, thus increasing the airflow to the mill chambers. This allows increased material flow capabilities in the mill chambers.

velocity-05

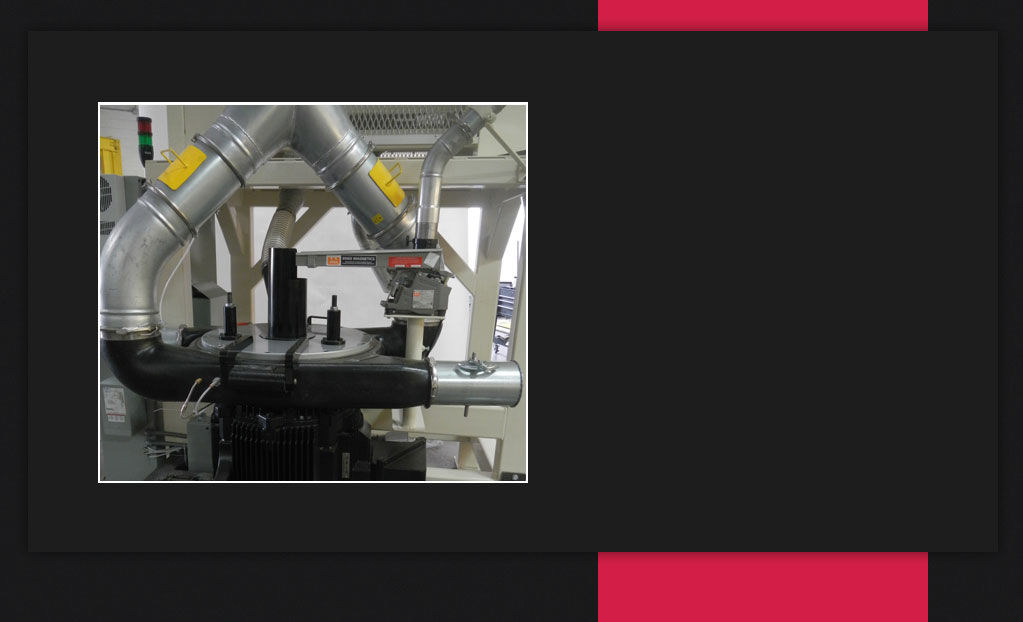

Mill Housing

  • Dual Air Inlets controlled by air damping valves to control the volume of air intake into each of the air inlets in the mill chamber

  • Dual material outlets which takes the material out of each side of the mill to reduce residence time and heat build up in the mill

velocity-06

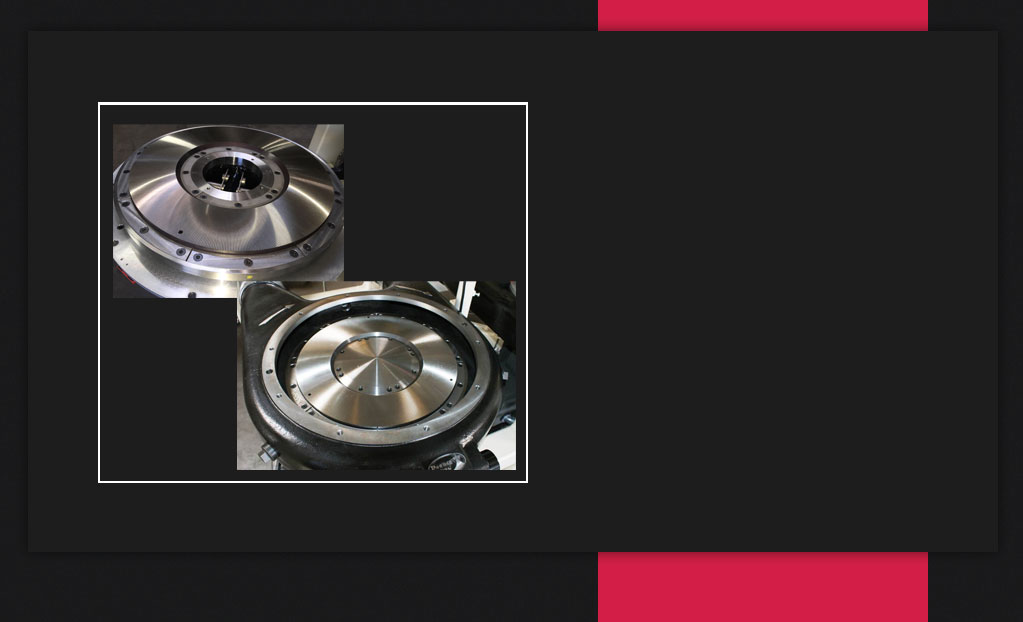

Abrasion Resistant Disks

  • 20” Abrasive Resistant Disks

  • The disks inner clamp and outer segments secure the disks

  • Water Jacketed Stationary Adjusting Fixture for Stationary Disks

velocity-07

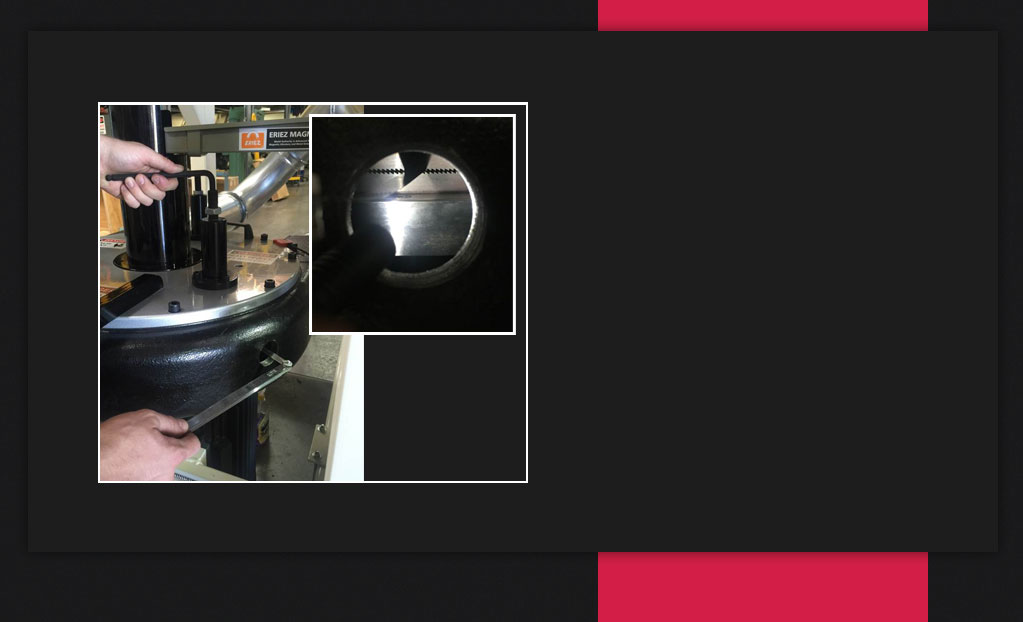

Single Tool Gap Adjusters

  • (3) Single Stud Disk Gap Adjusters per mill that Allow adjustment of the disk gap from outside the mill. Integrated spring loaded mechanism on stud provides single point adjustment.

Specifications: PKA VELOCITY PULVERIZING MILL

Cutting Disk Size: 20” Abrasive Resistant Disks
Standard Mill Motor: 150 HP
Hopper Size: 14.2 cu. Ft./500 lbs. Rotational Molded
No. of Mills: 1
Sifters: 9 Deck Sifter
Blower: 20 HP/5,000 CFM
Control System: HMI Touchscreen, PLC Operating System
Production Rates*: 1,600-2,200 lbs/hr
Dimensions: 129”L x 103”W x 250”H

Grinding Rates at 70°F
Rigid PVC 1600-2200 lbs/hr 18-20 mesh (STD 75 hp motor)
LLDPE 1600-2200 lbs/hr (rate varies by mesh size
required) 35 mesh
XLPE Black 2000-2800 lbs/hr 20 mesh

Standard Features

  • Direct Drive Mills
  • This revolutionary design eliminates the use of industry standard belt drive. The flywheel for the rotating disks is directly connected to the motor shaft, eliminating the belt drive, bearing housing and motor adjustment fixture. The direct drive provides 100% of the available horse power, which belt drive models do not. The direct drive saves our customers the expense of stocking expensive drive parts, bearings, seals, belts, spindle shaft or complete bearing housing assembly. The direct drive also eliminates down time due to bearing or belt failure.
  • Heavy Gauge Quick Disconnect Piping.
  • The piping is heavier gauge than our competition and the clamps connecting each joint are forever clamps with positive O-ring seal to eliminate leaking of powder at the connection.
  • 150 HP and 150 HP High-Efficiency Cast Iron Motors
  • Large Capacity Rotationally Molded Plastic Pellet Hopper with Center Flow
  • 14.2 Cu. Ft. 350 lbs. Center flow eliminates hang-ups of material in the hoppers. Largest capacity – 2-1/2 times the size of competitor’s standard hopper.
  • Standard Upper & Lower Operator Work Platforms
  • Improved operator safety and access to everything on the machine.
  • Extra thick, heavy-duty malleable steel housings are cast in one-piece for increased safety.
  • All Eaton Cutler Hammer Electrical Components – 10″ HMI Operator Touch Screen, Eaton Logic Control PLC, Contactors and Starters (The industry standard with worldwide accessibility to parts and service).
  • Optional Variable Frequency Drives that reduce the in-rush of electricity to 30 AMPS and consumption during start-up. This reduces demand of electricity at start-up which results in huge electrical savings for our customers. 50 Hz machine are standard with VFD.
  • High Output Vibratory Feeder – Eriez 26C – 99% efficient – professionally designed cyclone eliminates carryover dust and product loss.
  • 20hp High-Efficiency Blower that creates the exact vacuum to move the product through the 8” Airlock system at the required velocity.
  • Backward Incline Blower Impellers for Noise DBA Reduction
  • 9-Deck Great Western Sifter for Precise Particle Separation
  • (3) Single Stud Disk Gap Adjusters per mill that Allow adjustment of the disk gap from outside the mill. Integrated spring loaded mechanism on stud provides single point adjustment.
  • Water Jacketed Stationary Adjusting Fixture for Stationary Disks
  • Aerodynamic Mill Design for Increased Airflow and Cooling
  • “Y” mainline vacuum pipe to the mills allows for equal vacuum draw at both mills, thus increasing the airflow to the mill chambers. This allows increased material flow capabilities in the mill chambers.
  • 20” Abrasive Resistant Disks – 58-60 Rockwell Hardness that are 30% larger than comparable models resulting in 20% to 30% greater output than similar models on the market. This disk design lasts 4-to-5 times longer than conventional disks. The disks inner clamp and outer segments secure the disks.
  • Small Machine Footprint – Optimized Vertical Footprint – Reduced floor space requirements. Optimized vertical footprint maximizes powder discharge height. Equipment is designed to accept the largest gaylord available in addition to discharging the center of the box. No need to remove piping for over-sized gaylords.
  • Powder Coated Finish for Extended Durability
  • Maintenance Friendly Design
    Component layout design for easy access to motors, grease fittings,
    Motors have single point adjustor for efficient belt adjustment.
    Machine ships in (3) fully assembled, pre-wired pieces. No field wiring, except incoming power, required.

Cost Savings Associated with In-house Pulverizing.

Pulverizing in-house generates savings as much as 6 to 8 cents per pound compared to purchasing your resin in powder form. Buying pellets and pulverizing in-house is an excellent alternative to make your company more competitive in today’s marketplace.

Our Commitment to Your Quality

Powder King® is unique in that our commitment to quality extends beyond what we manufacture into what you manufacture. Our disks and airflow management technology are engineered to consistently achieve perfect particle distribution and the required bulk density and dry powder flow. We have an operator-training program that provides operators a comprehensive understanding of pulverizing and focuses on maintaining the highest level of powder quality.
