Powder King
pka-18-lab-pulverizing-millpka-18-lab-pulverizer-millwe-deliver-pulverizing-mill

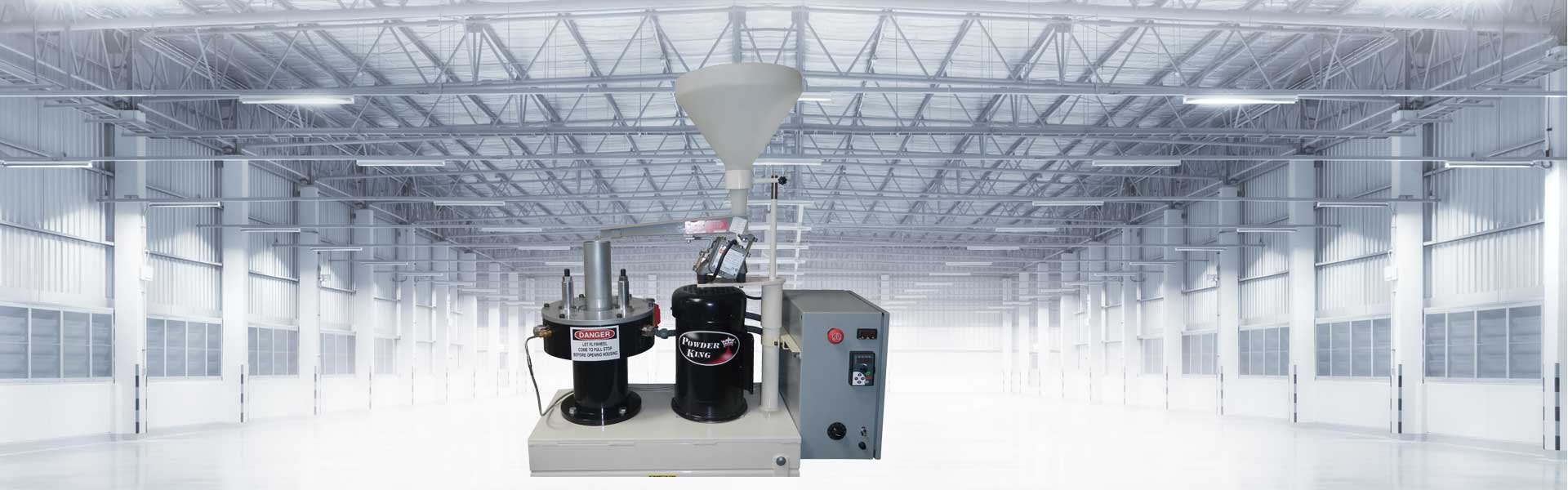

PKA-18 TABLE TOP LAB MILL

  • Temperature Controller, Variable Speed Drive for Mill Motor
  • 8” Abrasive Resistant Disks
  • Aluminum mill housing with integrated bearing housing
  • Flywheel Mounted with Machine Impeller on Tapered Shaft to Run Within .001”
  • 5-HP Motor
  • Single Tool Gap Adjusters
  • Variable Speed Drive on mill motor with dynamic braking
  • Through-Put Rates 50 lbs/hr

Powder King® has now developed a laboratory system for small sample milling, from one pound to fifty pounds. The PKA-18 will save your company valuable time milling small samples, quickly and with very little clean time required. This saves you from pulverizing small samples on a large system that requires hours of cleaning. The PKA-18 can be cleaned out and ready for the next sample in less than ten minutes.

PKA-18-sliders

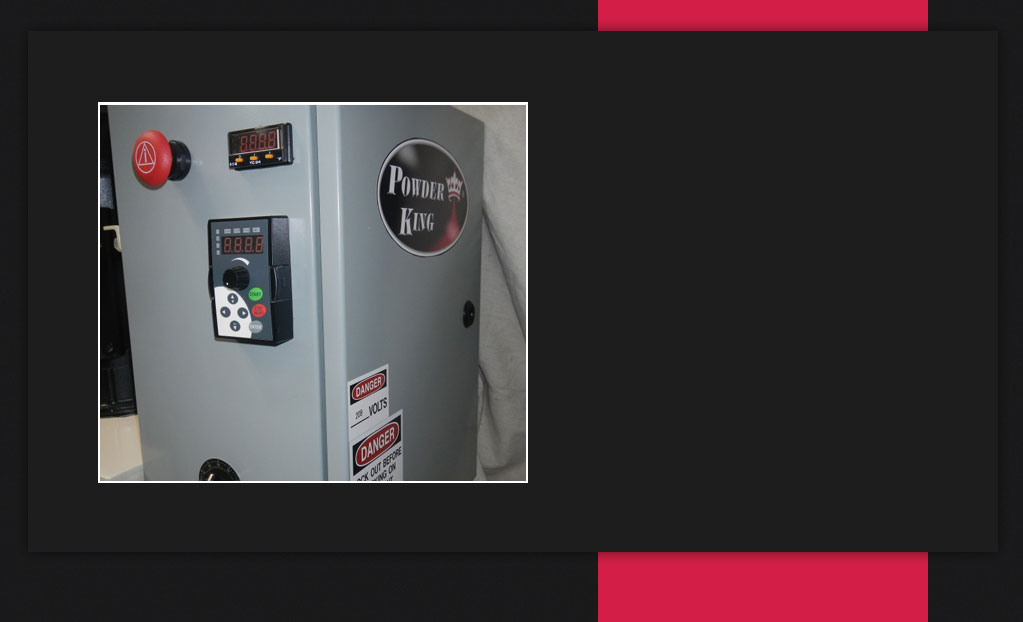

Control Panel

  • Temperature Controller, Variable Speed Drive for Mill Motor

PKA-18-table-top-sliders-2

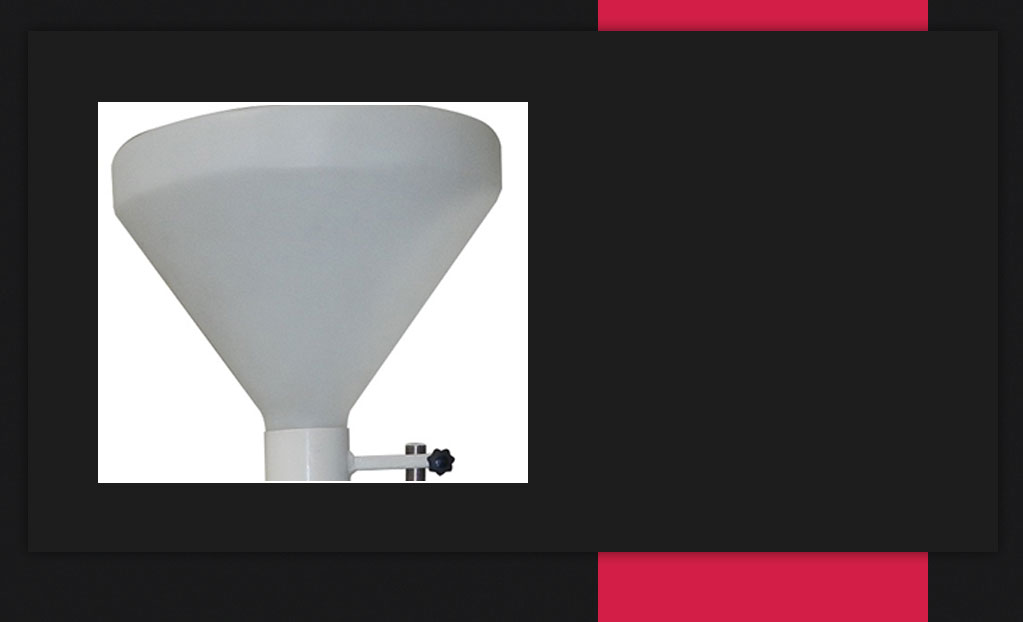

Hopper

  • 10 lb. Hopper

PKA-18-table-top-sliders-3

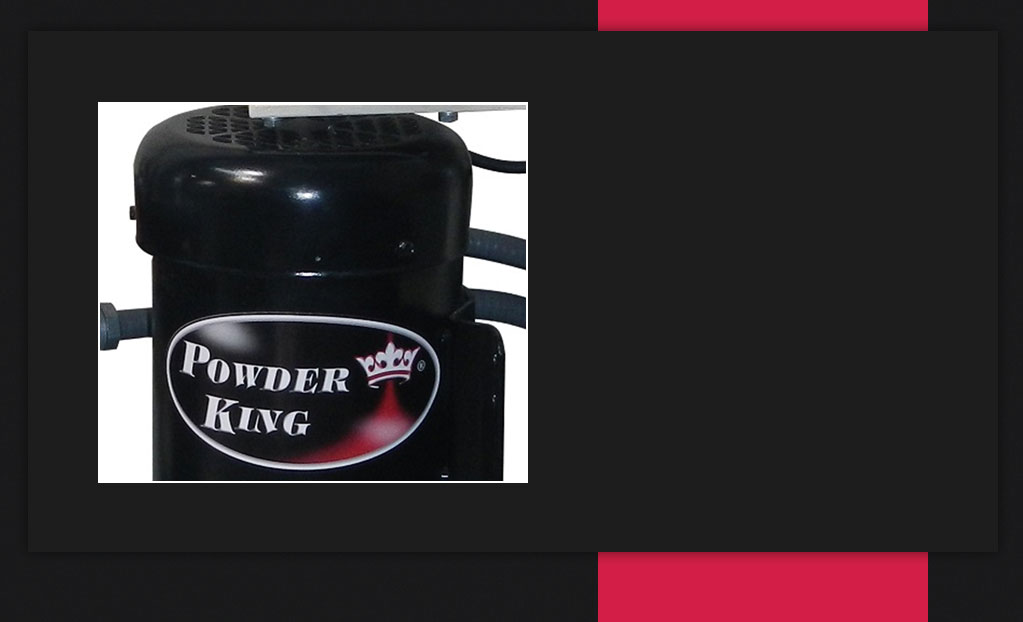

Motor

  • 5 hp Motor

PKA-18-table-top-sliders-4

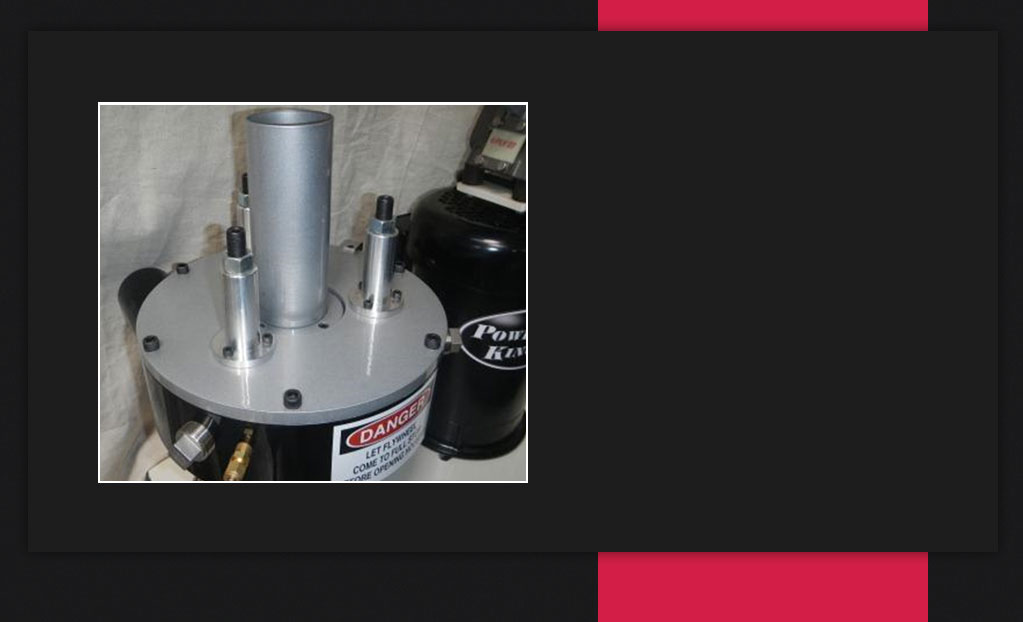

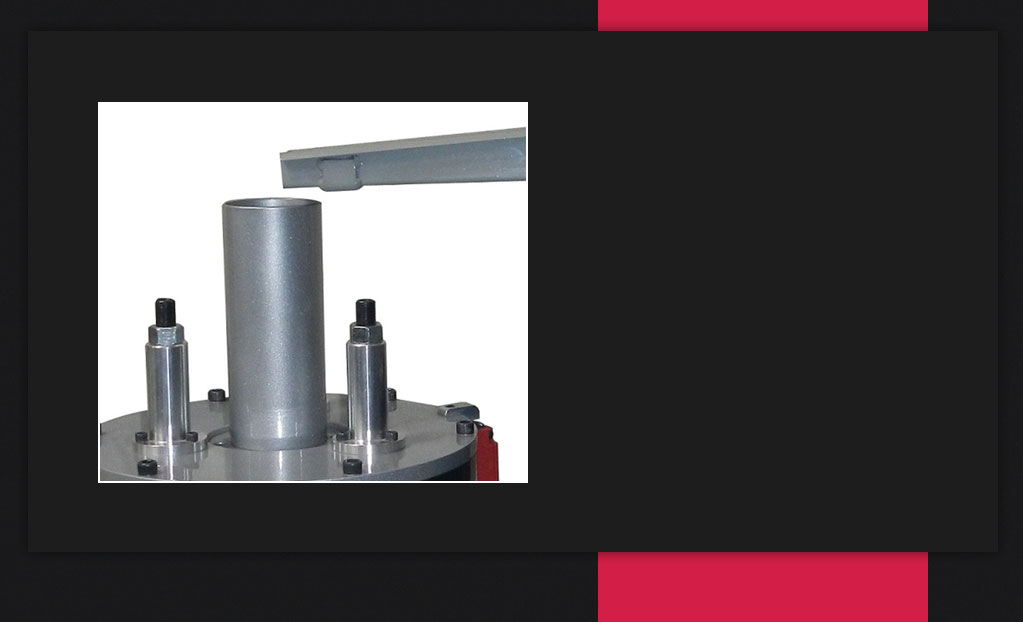

Disk Adjusters

  • (3) Point Disk Adjusters

PKA-18-table-top-sliders-6

Vibratory Feeder

  • Eriez 15c Feeder

PKA-18-table-top-sliders-7

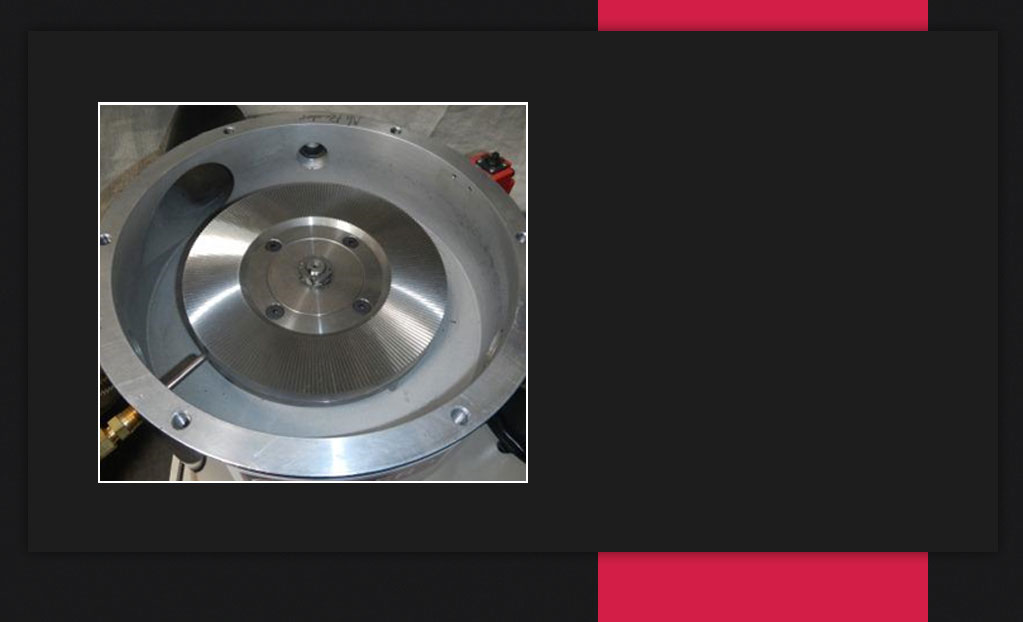

Adjustable Disks

  • 8" Rotating Disk

Specifications: PKA-18 TABLE TOP LAB MILL

Cutting Disk Size: 8” Abrasive Resistant Disks
Standard Mill Motor: 5 HP
Hopper Size: 10 lbs. Rotational Molded
No. of Mills: 1
Sifters: no Deck Sifter
Blower: Built In Flywheel
Control System: Controller
Production Rates*: 50 lbs/hr
Dimensions: 28”L x 15”W x 30”H
