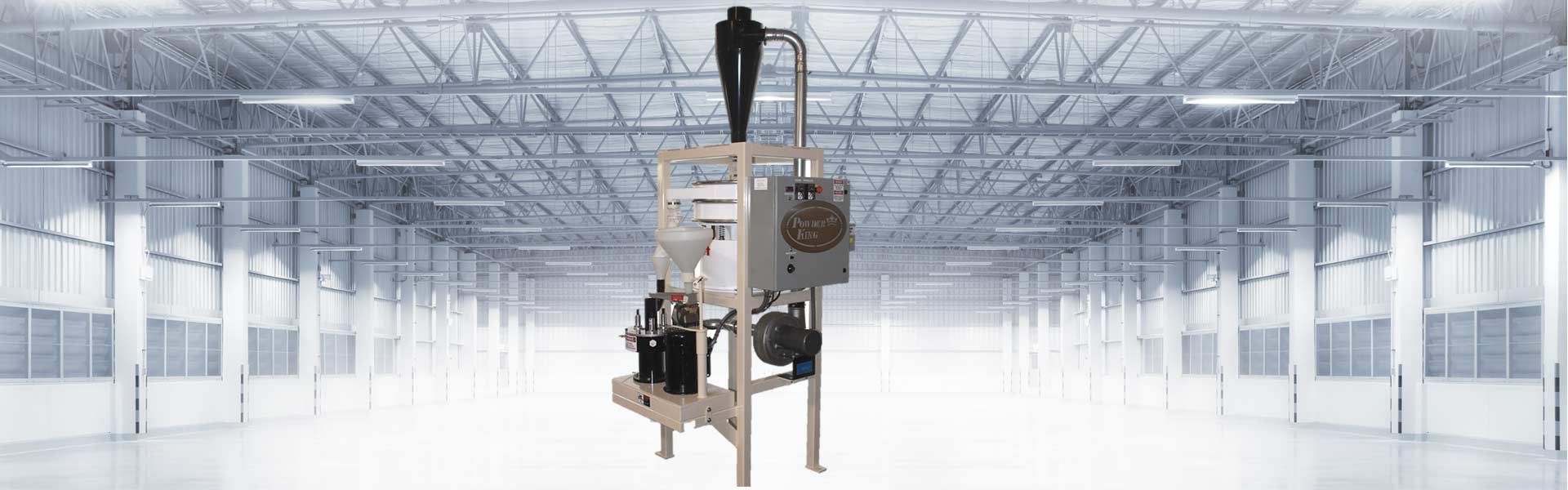

PKA-18 FULL SCALE LAB MILL

  • Control Panel with Temperature Controller
  • Inverter Drives for Speed Optimization
  • 8” Abrasive Resistant Disks
  • Sifter for Precise Particle Separation in a Laboratory Atmosphere
  • Aluminum Mill Housing with integrated bearing housing
  • Flywheel Mounted with Machine Impeller on Tapered Shaft to Run Within .001”
  • 5-HP Motor
  • ¾ HP Built-in Blower Fan
  • Cyclone
  • Single Tool Gap Adjusters
  • Variable Speed Drive on Mill & Blower Motor for Speed Optimization
  • Through-Put Rates 50 lbs/hr

Powder King® has now developed a laboratory system for small sample milling, from one pound to fifty pounds. The PKA-18 will save your company valuable time milling small samples, quickly and with very little clean time required. This saves you from pulverizing small samples on a large system that requires hours of cleaning. The PKA-18 can be cleaned out and ready for the next sample in less than ten minutes.

pk-18-control-panel

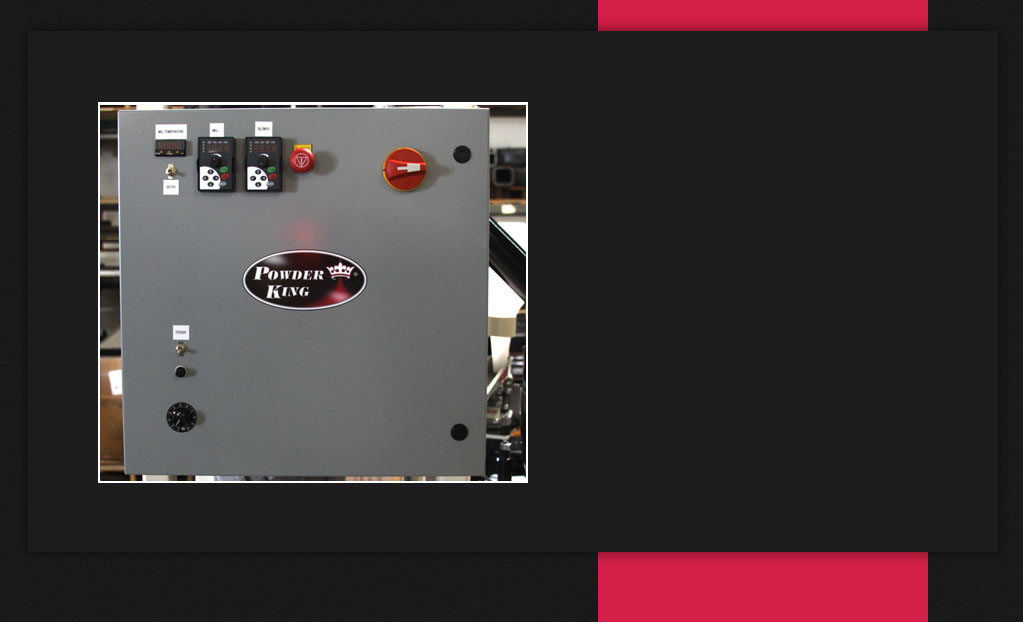

PLC Control Panel

  • The PKA-18 PLC Control Panel is fitted with temperature controller, inverter drives for the mill motor to optimize disk speed, and the auger to ensure maximum speed adjustments are available for these components.

PKA-18-sliders-2

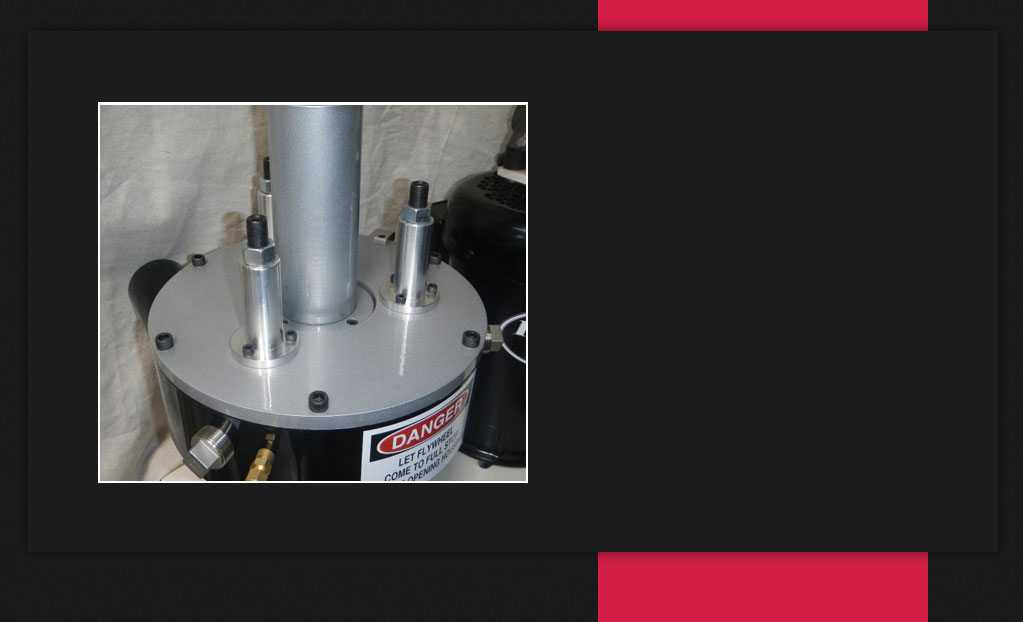

Disk Adjusters

  • (3) Single Stud Disk Gap Adjusters

PKA-18-sliders-3

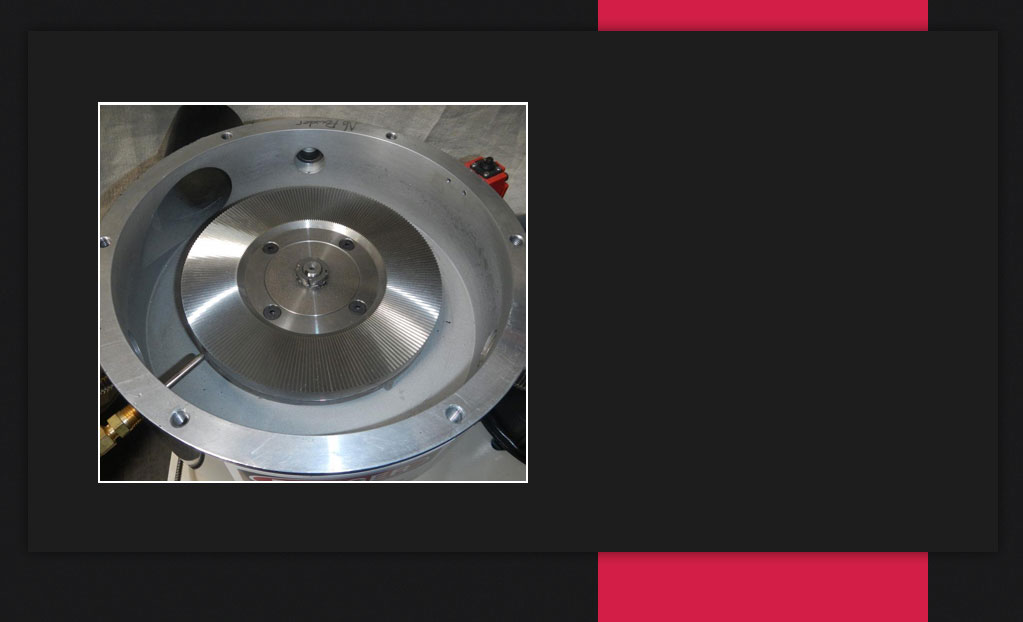

Adjustable Disks

  • 8” cutting disk size

PKA-18-sliders-4

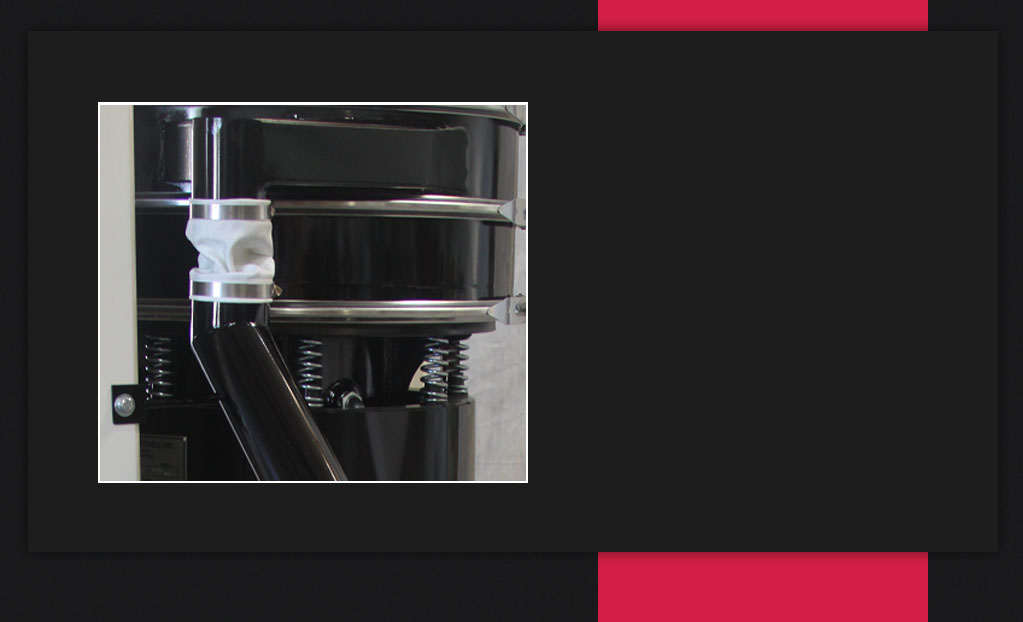

Sifter

  • Precise particle separation in a laboratory atmosphere

Specifications: PKA-18 FULL SCALE LAB MILL

Cutting Disk Size: 8” Abrasive Resistant Disks
Standard Mill Motor: 5 HP
Hopper Size: 10 lbs. Rotational Molded
No. of Mills: 1
Sifters: 1 Deck Sifter
Blower: Built In Flywheel
Control System: Variable speed drives for mill & Auger Feeder
Production Rates*: 50 lbs/hr with precise particle separation
Dimensions: 65”L x 44”W x 125”H
