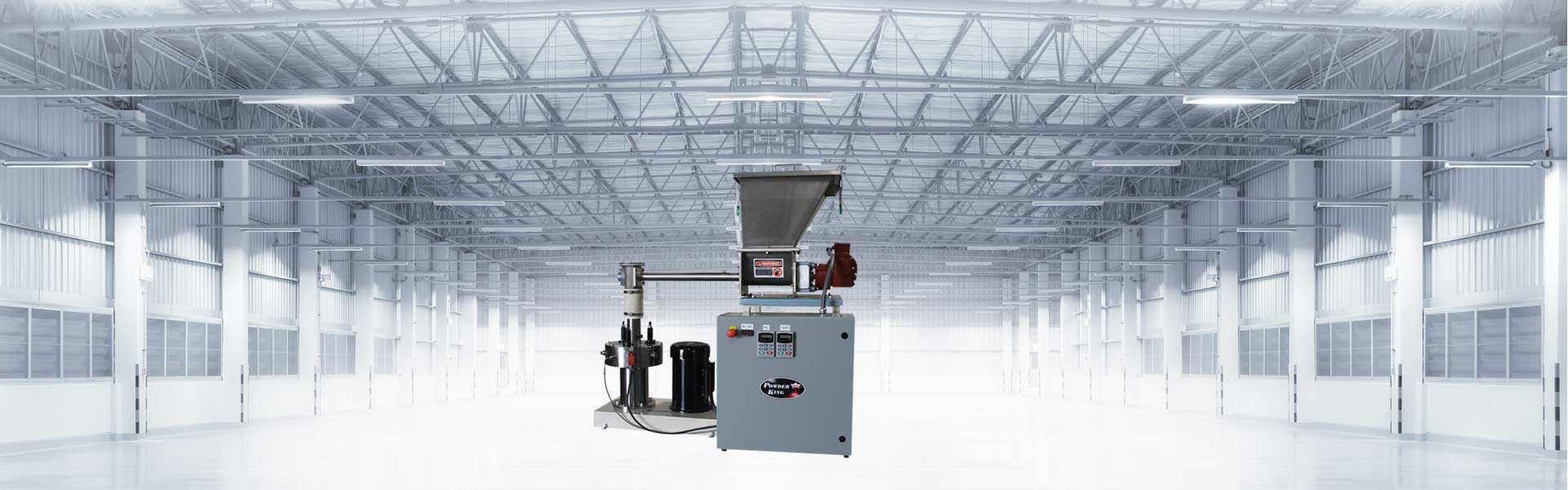

PKA-18 CRYOGENIC TABLE TOP LAB MILL

  • Stainless Steel Mill Housing with integrated bearing housing
  • 8” Abrasive Resistant Disks
  • Flywheel Mounted with Machine Impeller on Tapered Shaft to Run Within .001”
  • 5-HP Motor
  • Stainless Steel Auger Feeder
  • Single Tool Gap Adjusters
  • Variable Speed Drive on mill motor with dynamic braking
  • Through-Put Rates 50 lbs/hr

Powder King® has now developed a laboratory system for small sample milling, from one pound to fifty pounds. The PKA-18 will save your company valuable time milling small samples, quickly and with very little clean time required. This saves you from pulverizing small samples on a large system that requires hours of cleaning. The PKA-18 can be cleaned out and ready for the next sample in less than ten minutes.

PKA-18-table-top-cryo-control-panel

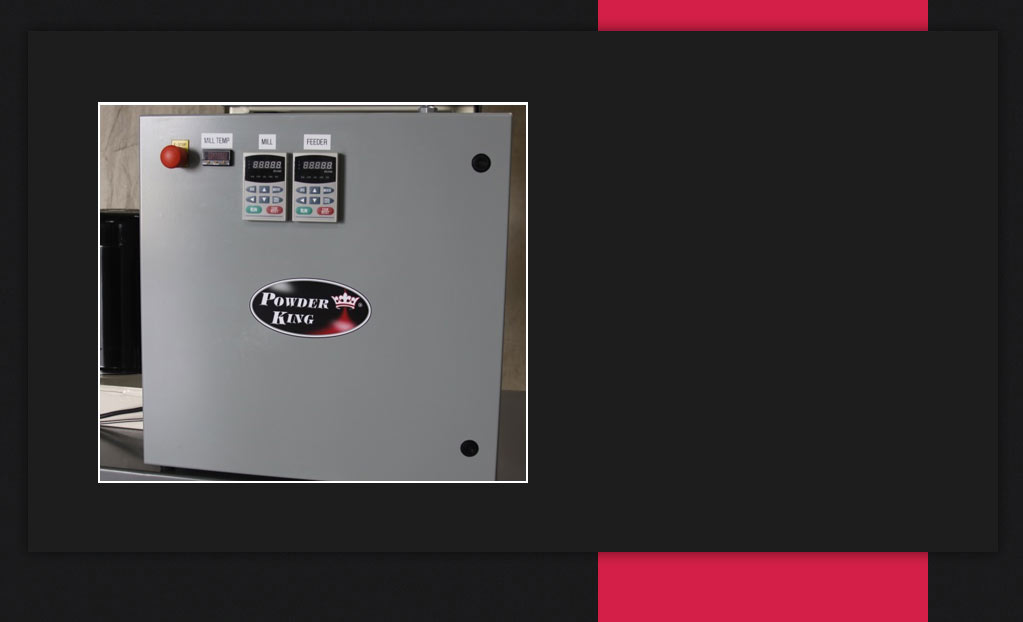

Control Panel

  • Variable speed drives for mill & Auger Feeder

PKA-18-table-top-cryo-mill-housing

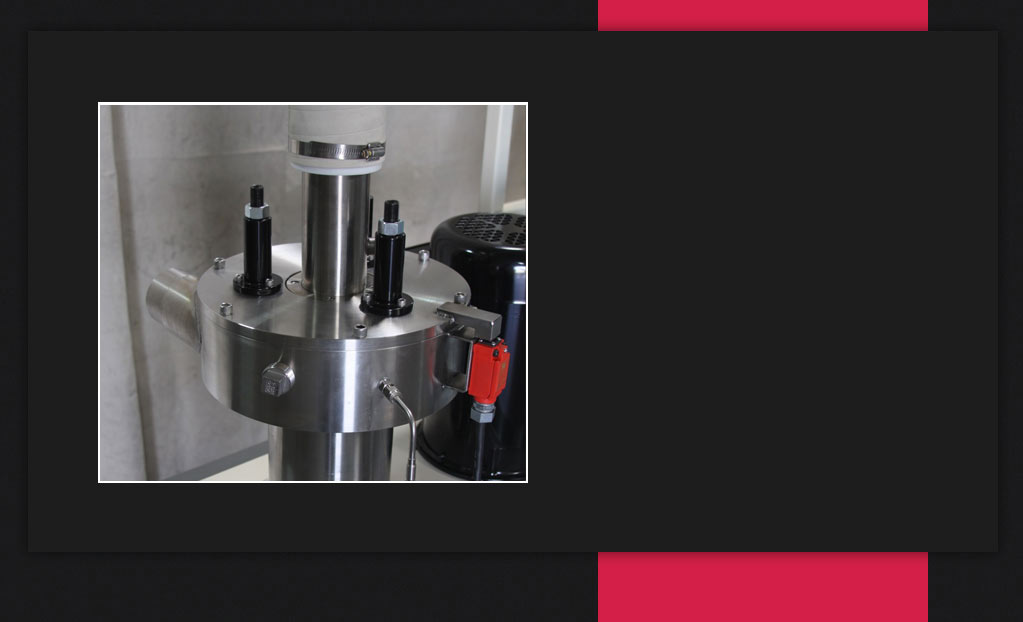

Mill Motor

  • 5 HP Mill Motor
  • Stainless Steel Auger Feeder
  • ¾ HP Built-in Blower Fan

PKA-18-table-top-cryo-single-gap

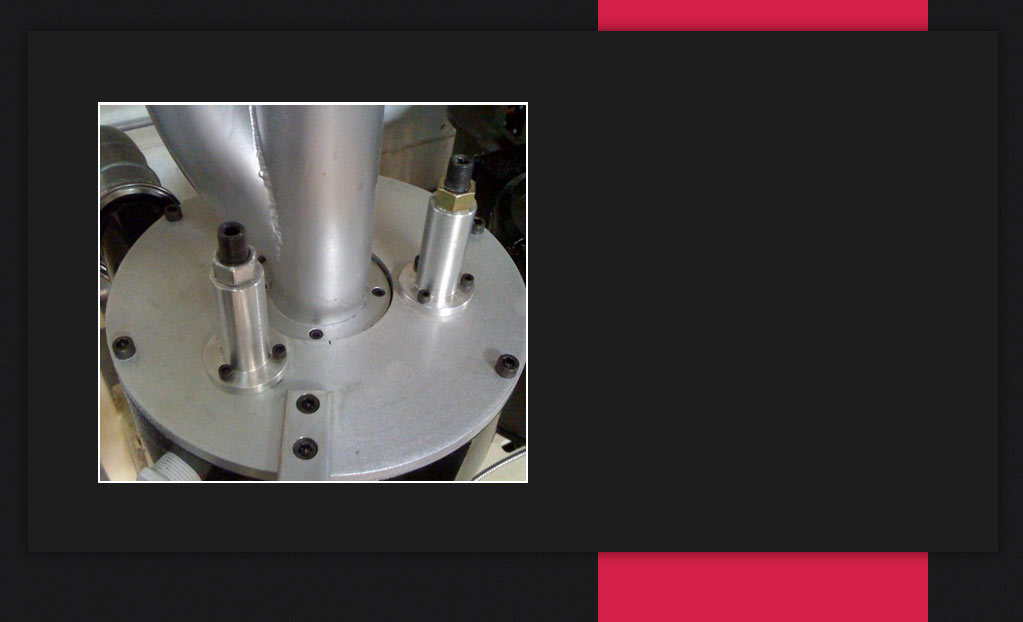

Gap Adjusters

  • Single tool gap adjusters

Specifications: PKA-18 CRYOGENIC TABLE TOP LAB MILL

Cutting Disk Size: 8” Abrasive Resistant Disks
Standard Mill Motor: 5 HP
Hopper Size: 10 lbs
No. of Mills: 1
Sifters: n/a
Blower: 3/4 HP Built-In Blower Fan
Control System: Variable speed drives for mill & Auger Feeder
Production Rates*: 50 lbs/hr with precise particle separation
Dimensions: 55”L x 26”W x 52”H
